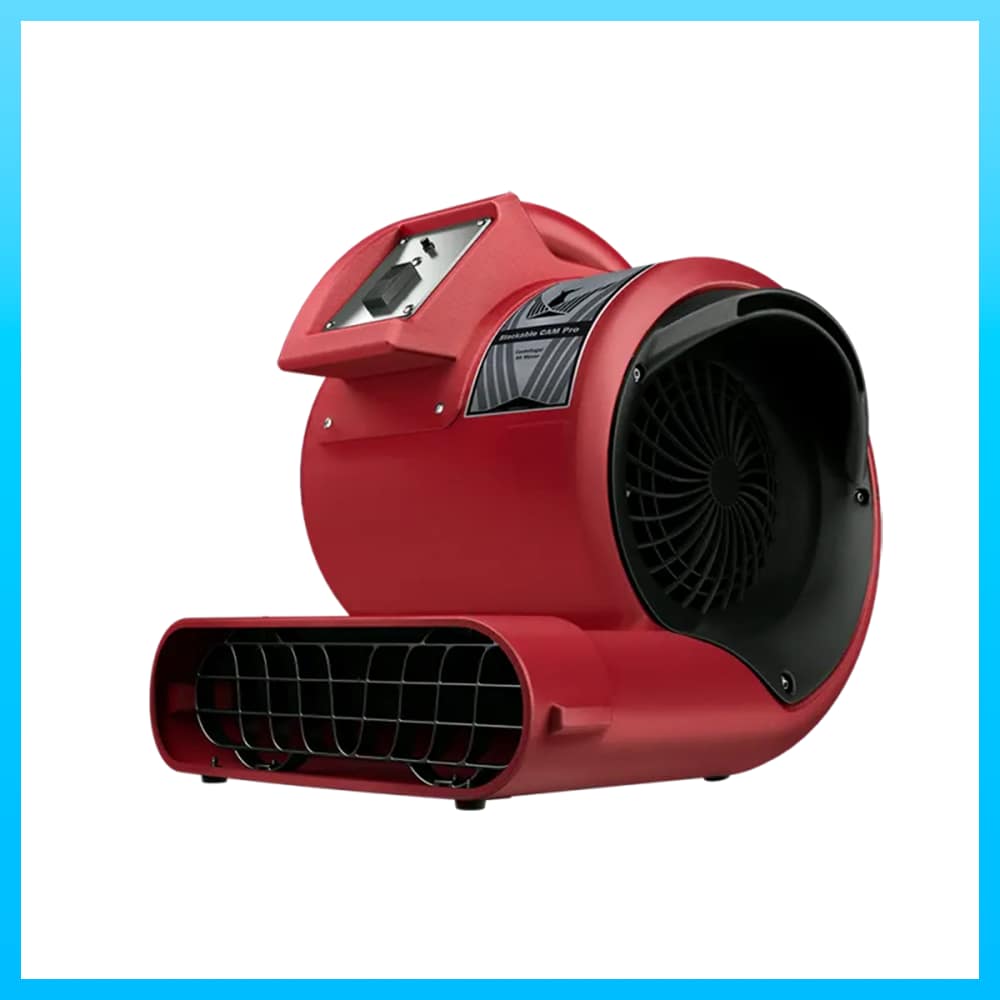

Phoenix Stackable CAM Pro

The Phoenix Stackable CAM Pro offers all the great features of our proven CAM air movers, with the addition
of an innovative stackable cabinet design. Featuring multiple contact points and interlocking side grills, the
Phoenix Stackable CAM Pro can be stored safely and securely up to 4 units high, freeing up valuable space in
your trucks and warehouses.
The Stackable CAM Pro features class-leading airflow and efficiency. Using a unique 1/3 horsepower motor
design and proprietary blower technology, the Phoenix Stackables achieve 1050 CFM at over 2800 FPM with
high static pressure, while using only 2.6 amps of electricity on high speed (2.0 amps on low speed). With it’s
low amp draw and onboard GFCI, the Phoenix Stackable CAM Pro gives you maximum airflow on a circuit,
allowing up to 4 CAMs on a standard 15 amp household circuit on high speed (or up to 6 on low speed).

• 2-Speed, 1/3 Horsepower Motor with automaticreset thermal protection
2.6 Amps on High Speed
2.0 Amps on Low Speed

• 20% more CFM/Amp than our current industry
leading CAM

• Maximum Velocity – 2800 FPM (1050 CFM)

• Balanced Exhaust Airflow

• Directional Airflow Horizontal, 45° Angle,
90° Angle

• Durable, rugged, chemical resistant housing,
fan wheel, and control design.

• Operator interface conveniently located for easy
access, featuring: power indicator lamp and
large three-position switch.

• Phoenix exclusive Pilot Light and Sealed Switch
are recessed to prevent damage.

• Ergonomic carry handle and power cord storage.

• Non-marking, anti-skid, rubber feet.

• On-board duplex GFCI outlet and circuit
breaker

Xactimate Code: WTRDRY
